TRANSMITTERS

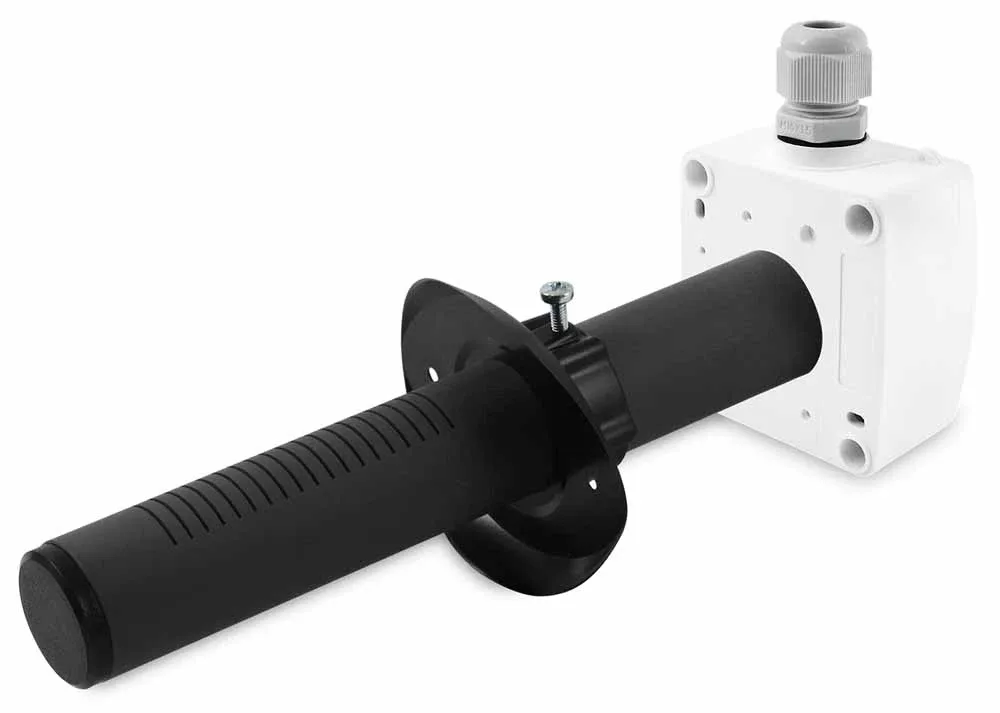

CO2 duct transmitter
SDC
The CO2 transmitter SDC series measures air quality through the presence of carbon dioxide in air ducts in the range between 0...2000 ppm / 0...5000 ppm. The measurement of CO2 concentration happens through a NDIR transmitter that operates on an infrared basis and which compensates the presence of any impurity. The product can be provided with humidity or humidity/temperature transmitter. Output 0 ... 10 Vdc or 4 ... 20 mA outputs.
DATASHEET PDFVariants
| Series | Description |
|---|---|
| SDCC | Duct CO2 sensor, 4...20 mA |
| SDCCD | Duct CO2 sensor, 4...20 mA, with display |
| SDCHC | Duct CO2 and humidity sensor, 4...20 mA |
| SDCHCD | Duct CO2 and humidity sensor, 4...20 mA, with display |
| SDCTC | Duct CO2 and temperature sensor, 4...20 mA |
| SDCTCD | Duct CO2 and temperature sensor, 4...20 mA, with display |
| SDCTHV | Duct CO2, temperature and humidity sensor, 0...10 V DC |
| SDCTHVD | Duct CO2, temperature and humidity sensor, 0...10 V DC, with display |
| SDCTV | Duct CO2 and temperature sensor, 0...10 V DC |
| SDCTVD | Duct CO2 and temperature sensor, 0...10 V DC, with display |
| SDCV | Duct CO2 sensor, 0...10 V DC |
| SDCVD | Duct CO2 sensor, 0...10 V DC, with display |
| SDCVV | Duct CO2 and air quality sensor, 0...10 V DC |
