SENSORS

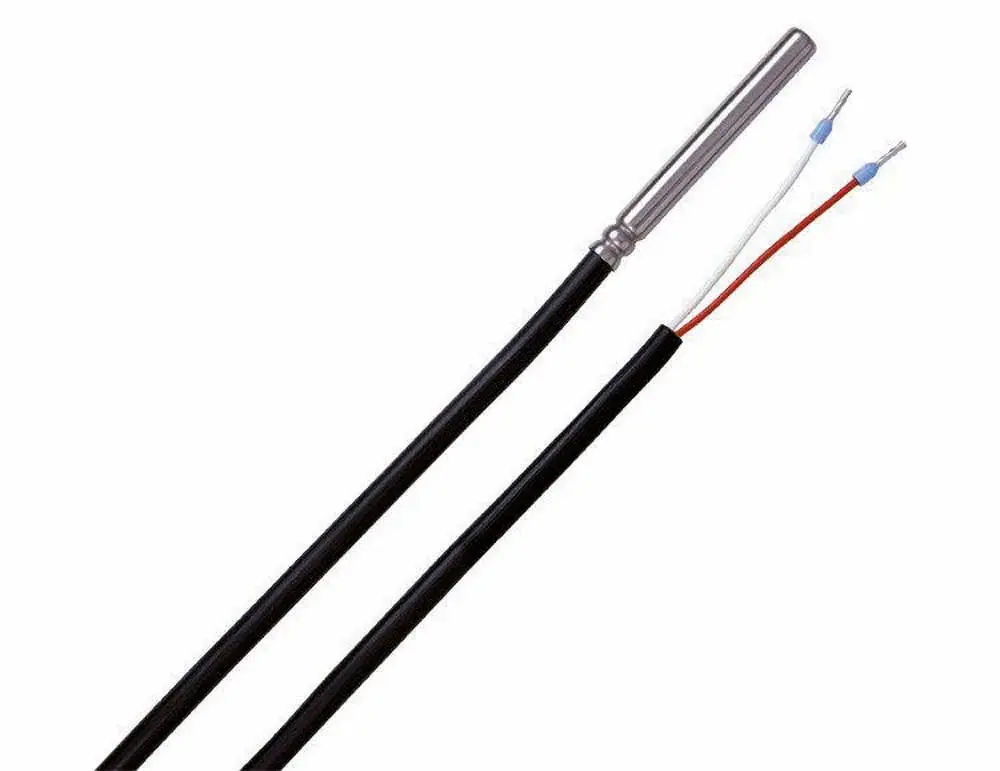

CABLE TEMPERATURE SENSOR
SC
The temperature sensor serie SC measures the temperature from -35 up to +105°C of gaseous and liquid media. The range is available with all type of current sensor elements. The stainless steel sleeve protects the sensor e.g. against mechanical impacts. It is sealed by the PVC cable against humidity and can be mounted in an immersion pocket, with a spring or bracket for pipe contact.
DATASHEET PDFVariants
| Series | Description |
|---|---|
| SC1-1 | Cable temperature sensor Pt100, 1 m |
| SC1-2 | Cable temperature sensor Pt100, 2 m |
| SC1-5 | Cable temperature sensor Pt100, 5 m |
| SC2-1 | Cable temperature sensor Pt1000, 1 m |
| SC2-2 | Cable temperature sensor Pt1000, 2 m |
| SC2-5 | Cable temperature sensor Pt1000, 5 m |
| SC3-2 | Cable temperature sensor Ni1000 TK6180, 2 m |
| SC3-5 | Cable temperature sensor Ni1000 TK5000, 5 m |
| SC4-2 | Cable temperature sensor Ni1000 TK6180, 2 m |
| SC4-5 | Cable temperature sensor Ni1000 TK5000, 5 m |
| SC5-2 | Cable temperature sensor NTC 20k, 2 m |
| SC5-5 | Cable temperature sensor NTC 20k, 5 m |
| SC6-2 | Cable temperature sensor NTC 10k, 2 m |
| SC6-5 | Cable temperature sensor NTC 10k, 5 m |
| SC7-2 | Cable temperature sensor KTY 81-110, 2 m |
| SC7-5 | Cable temperature sensor KTY 81-110, 5 m |
| SC8-2 | Cable temperature sensor KTY 81-121, 2 m |
| SC8-5 | Cable temperature sensor KTY 81-121, 5 m |
