MOTORIZED VALVES

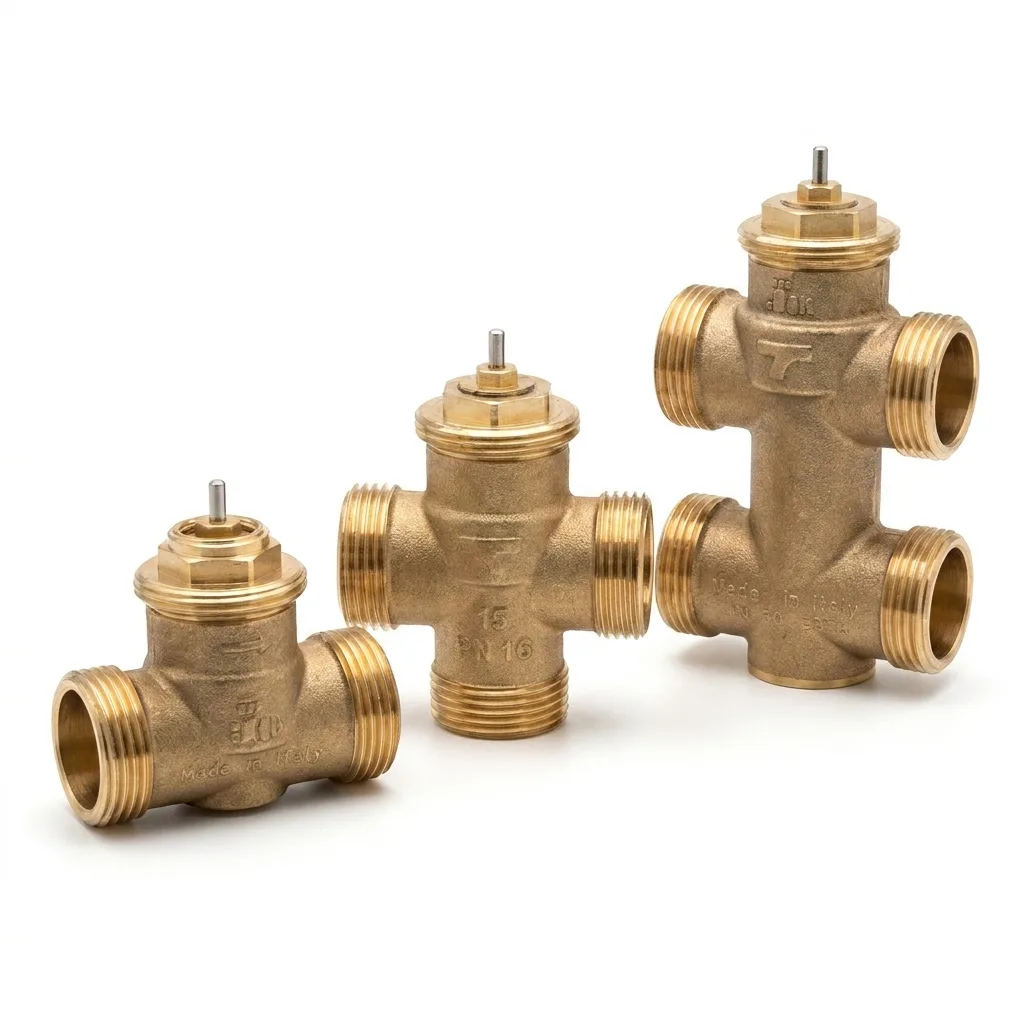

MOTORIZED VALVE WITH ELECTROTHERMAL ACTUATOR
VB, SVB
The motorized valve serie VB are intercepting, diverting or mixing fluids in heating and cooling systems and are motorized by the electrothermal actuator serie SVB. The 2-way valves are used for opening and closing, while the 3-way and 4-way valves can be used as diverting or mixing valves. When the stem is pressed the valve is closed. The small sizes allow easy installation in fan coils and terminal unit coils. The actuator-valve assembly is easily made thanks to its threaded ring nut, which allows a comfortable cable positioning.
DATASHEET PDFVariants
| Series | Description |
|---|---|
| VB215 | Brass valve for fan coils G 1/2, 2 ways, KVs 1.6 |
| VB220 | Brass valve for fan coils G 3/4, 2 ways, KVs 2.5 |
| VB225 | Brass valve for fan coils G 1, 2 ways, KVs 4.5 |
| VB315 | Brass valve for fan coils G 1/2, 3 ways, KVs 1.6 |
| VB320 | Brass valve for fan coils G 3/4, 3 ways, KVs 2.5 |
| VB325 | Brass valve for fan coils G 1, 3 ways, KVs 4.5 |
| VB415 | Brass valve for fan coils G 1/2, 3 ways - 4 port, KVs 1.6 |
| VB420 | Brass valve for fan coils G 3/4, 3 ways - 4 port, KVs 2.5 |
| VB425 | Brass valve for fan coils G 1, 3 ways - 4 port, KVs 4.5 |
| SVB230 | Electrothermal actuator, 230 V AC, 110 N |
| SVB230C | Electrothermal actuator, 230 V AC, 110 N with aux. switch |
| SVB24M | Electrothermal actuator, 24 V AC, 170 N, proportional |
