MOTORIZED VALVES

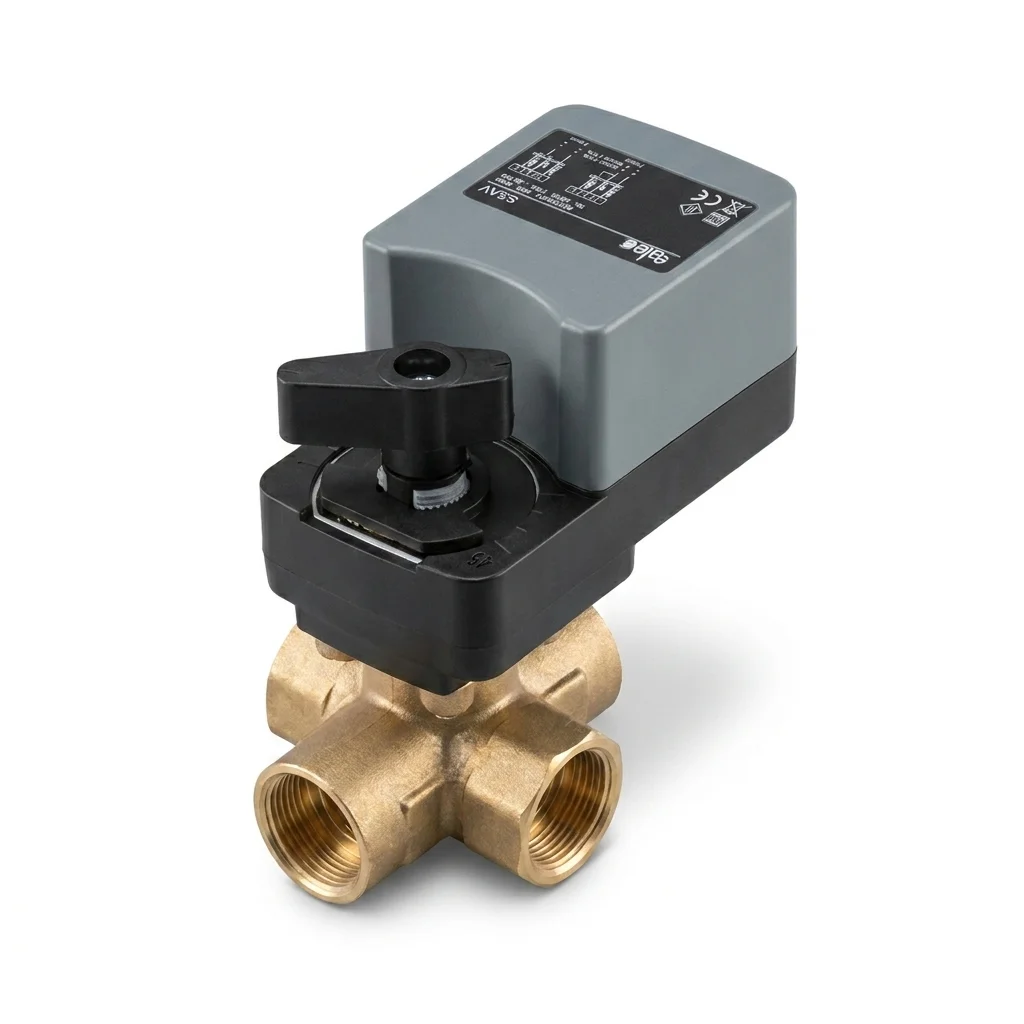

Actuator for ball valves, 5 Nm
S5..V
The electric actuator series S5..V for ball valves are used in heating, refrigeration and air conditioning systems. For valves from DN15 to DN32 Power supply 24 VAC / DC and 230 VAC Function: open / closed or 3 point and proportional action Shaft dimension □ 9 mm square (fixed) Direction of rotation selectable by switch Actuator with 1 m connection cable Optional 1 adjustable SPDT auxiliary switch
DATASHEET PDFVariants
| Series | Description |
|---|---|
| S5AV | 5 Nm actuator for ball valves VS, 24 V AC/DC, 2-3 point |
| S5AMV | 5 Nm actuator for ball valves VS, 24 V AC/DC, proportional |
| S5BV | 5 Nm actuator for ball valves VS, 230 V AC, 2-3 point |
